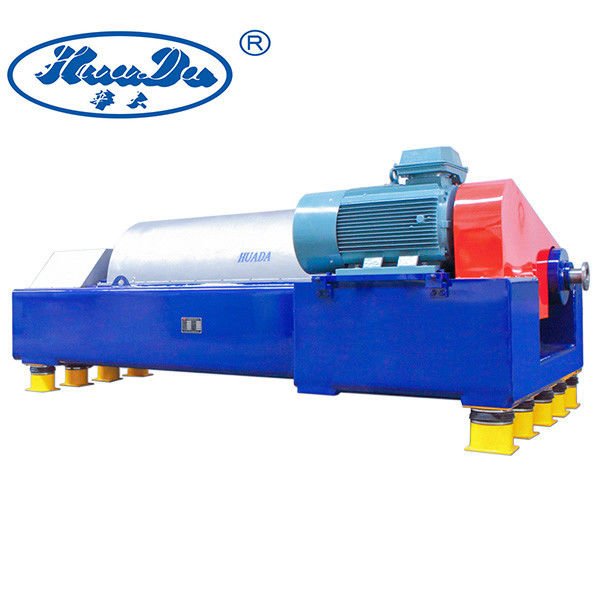

Mining Screen Scroll Centrifuge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD80000-180000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| Rotating Speed Control: | Frequency Converter | Screen Touch: | Optional |
| Application: | Mining | ||
| Highlight: | Mining Screen Scroll Centrifuge,Mining industrial decanter centrifuge,NSK Bearing Screen Scroll Centrifuge |
||
Product Description
LWZ Horizontal Automatic Large Screen Decanter Centrifuge For Mining
Description
LWZ centrifuge series are integrated with the advantages of both centrifugal sedimentation and centrifugal filtration, which are also designed to be mutually complementary to enhance the separation effect and separation efficiency and expand the scope of product application, so as to realize optimal application.
It is especially applicable to the solid-liquid separation of suspension liquids containing crystals, particles, fibers or others.
In the particle size scattergram, the particles with d≥0.08mm;
The feeding concentration of solid matters entering the centrifuge is 5~60Wt%;
It can also be used for separating the materials containing a small amount of organic or adhesive substances (such as tar).
Successful Applications
Separation of ammonium sulfate wastewater and process products
Separation of ammonium chloride wastewater and process products
Separation of potassium sulfate products
Separation of potassium chloride products
Separation of nitro-cotton products
Separation of degradable plastic products
Separation of CPE insulating materials
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWZ530*2120 | 530 | 4 | 2800 | 2330 | 45-55 | 5500 | 4870*1230*1520 |
| LWZ650*1950 | 650 | 3 | 2500 | 2260 | 90 | 7500 | 4750*1720*1560 |
| LWZ1000*3000 | 720 | 3 | 1500 | 1260 | 132 | 16000 | 5200*2500*2000 |
