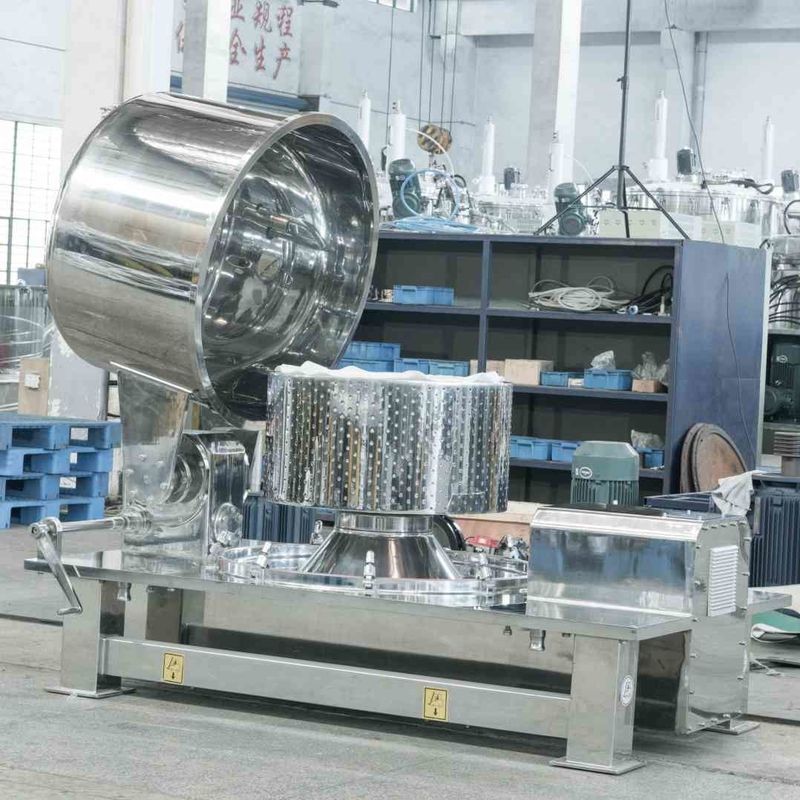

Manual Top Discharge Centrifuge 100L Calcium Fluoride Separation Machinery
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFB800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 65 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Basket Volume(L): | 100 |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Machine Control: | PLC Control |
| Max. Speed(r/min): | 1200/1500 | Motor Power(kw): | 7.5 |
| Rotating Speed Control: | Frequency Converter | Dimension(mm): | 2200*1250*1310 |
| High Light: | Manual Top Discharge Centrifuge,1500rpm hand centrifuge machine,Top Discharge Centrifuge 100L |
||
Product Description
PQFB Manual Top Discharge After-Sale Service Calcium Fluoride Separation Machinery
Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket.
Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. The solid cake is discharged manually and move to next batch.
PQFB
Technical Parameters
| Items | Models |
| PQFB800 | |
| Basket Diameter(mm) | 800 |
| Effective Basket Height(mm) | 400 |
| Basket Volume(L) | 100 |
| Max. Capacity(kg) | 140 |
| Max. Speed(r/min) | 1200/1500 |
| Max. Separation Factor | 645/1007 |
| Motor Power(kw) | 7.5 |
| Dimension(mm) | 2200*1250*1310 |
| Weight(kg) | 2000 |
Scope/Field of Application
PQFB/PQSD centrifuges are suitable for the washing and solid-liquid separation of suspensions containing solid particles, with the particle size of 0.02mm~5mm and solid content above 10%, 50% to the maximum. This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Main Configurations
- Big turnover cover: hand-controlled reducing mechanism or hydraulic drive.
- Base: foundation platform and stainless steel liquid damper.
- Washing mode: washing pipe, atomizing & washing pipe, CIP online cleaning system.
- Filtering medium: imported sintering screen, filter cloth, etc.
- Flip cover configuration: overall turnover cover + small turnover cover, explosion-proof sight class with lamp, diluting pipe, observation mirror, feeding pipe.
- Electric configuration: PLC control, variable-frequency (VF) control, electric control cabinet (ordinary type and explosion-proof type), motor (ordinary type, explosion-proof type, VF type and energy saving type), field operation box (ordinary type and explosion-proof type). Nitrogen protection system, oxygen content detection system, liquid seal, gas seal, etc.
- Other requirements of customer
Main Features
1,With full-turnover cover design and polished surface leaves no residual heel. The case, fixing parts and basket are made of stainless steel. It is easy to clean the gap between the case and the basket.
2,Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
3,Liquid-damping vibration isolators, simplify the routine maintenance.
4,Full-turnover hinged cover, feeding pipe, washing pipe, observation glass and light. Automatic CIP system (optional) cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
5,Wide range of applications. No damage to the particle shape.
6,Inverter start-up, smooth starting, adjustable relative centrifugal force. Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment.
7,It can be configured with manual, hydraulic and a variety of forms of flip.
