Halar Lined Ethanol Extraction Centrifuge CBD Extraction System
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB400P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Effective Volume: | 100L |
|---|---|---|---|
| Application: | Solid Liquid Separation, Dewatering | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Operate: | Manual Batch Operating |
| Basket Volume: | 50L | Basket Speed: | 1500r/min |
| Highlight: | Halar Lined Ethanol Extraction Centrifuge,100L solid liquid centrifuge,Ethanol Extraction Centrifuge PLC Control |
||
Product Description

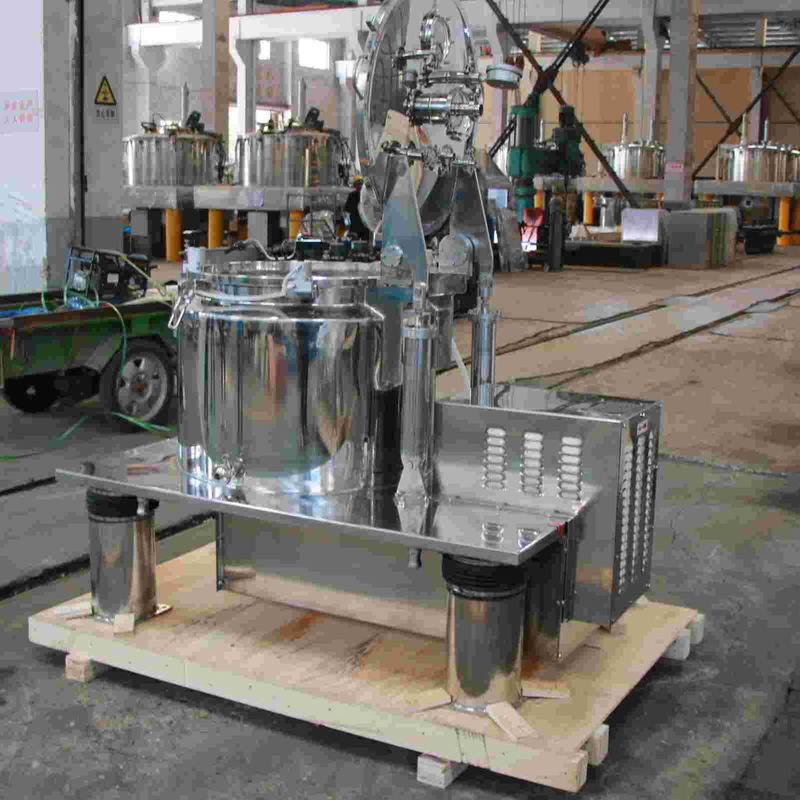

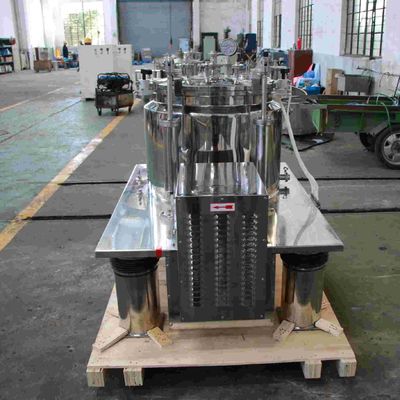

PSB400P Series CBD Extraction System PLC Control Halar Lined Centrifugal Distillation Extractor Machine
Brief introduction
After crushing plant stems and leaves, the residues were completely dehydrated by soaking in water or organic solvents to obtain the maximum yield. Usually, the process of extraction and solid-liquid separation is accomplished by soaking extraction in extraction tank, pressing or centrifugal dehydration after preliminary slag discharging.
The machine adopts the drum design of lower hub and flat drum bottom, and cooperates with the automatic programming of centrifuge forward and backward washing, grading speed-up and drying, completing a cycle of automatic operation process such as immersion, extraction, dehydration and drying.
Technical Parameters
| Items | Models |
| PBZ400P | |
| Effective Volume (L) | 100 |
| Basket Volume (L) | 50 |
| Basket Diameter (mm) | 400 |
| Basket Height (mm) | 450 |
| Shell Diameter (mm) | 500 |
| Shell Height (mm) | 545 |
| Max. Loading Weight (kg) | 15 |
| Basket Speed (r/min) | 1500 |
| Separation Factor | 500 |
| Motor Power | 4 |
| Transmission Mode | Direct motor drive |
| Dimension (L×W×H) (mm) | 800*800*1350 |
Company profile
Concentrated
Jiangsu Huada Centrifuge Co., Ltd., a subsidiary of SCIMEE (stock code: 300425), was established in 1993 in Zhangjiagang, an emerging port city in China. It is a leading domestic centrifuge manufacturer. Over the years, it has always focused on the research and development, production and sales of filtration and separation machinery, and has insisted on building an open and win-win cooperation system to lead the industry with scientific and reasonable technological innovation, win the market with specialized and standardized customer service, guarantee quality with excellent management and provide solutions to the solid-liquid separation problems for each customer with concentrated attention.
Specialized
In response to the individual needs of customers, it integrates automation and humanized design in the design and manufacturing process based on its experience, and provides customers with practical and feasible separation technical solutions and products by optimizing the centrifuge technologies and modular design.
Innovative
Huada holds a dominant position in the domestic centrifuge market, which to a great extent is attributed to its leading role (leading both users and peers). Although it has a number of new products and new technologies, it is not content with having centrifuges meet the separation requirements in the initial use. It is more concerned about the long-term performance of the centrifuge and would like to solve problems such as high productivity, high washing rate, low crystal breakage rate, low residue rate and low energy consumption for customers and provide customers with safe, intelligent and environmentally friendly separation equipment and solutions.
