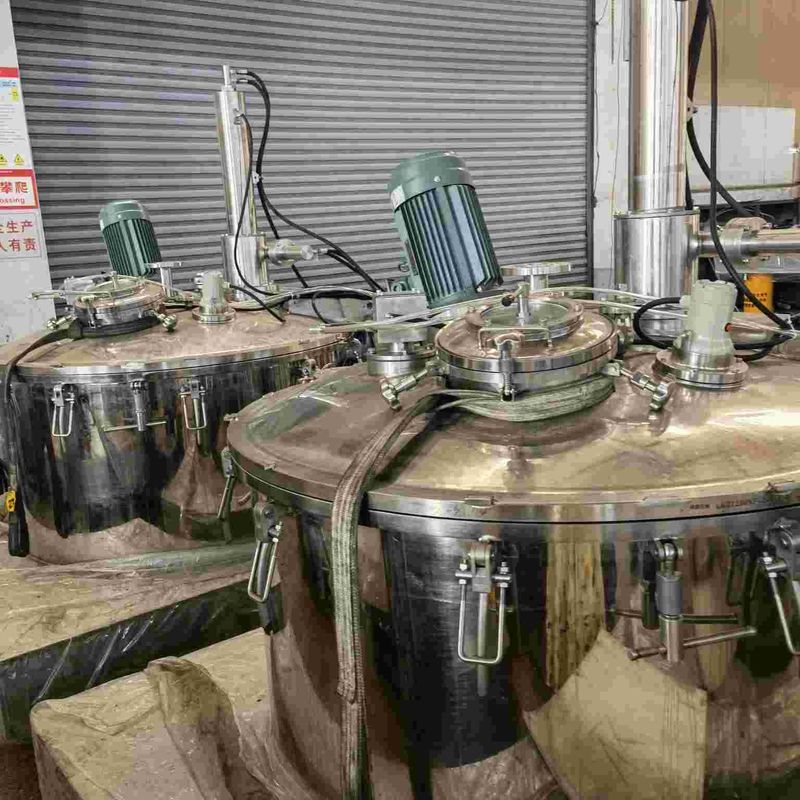

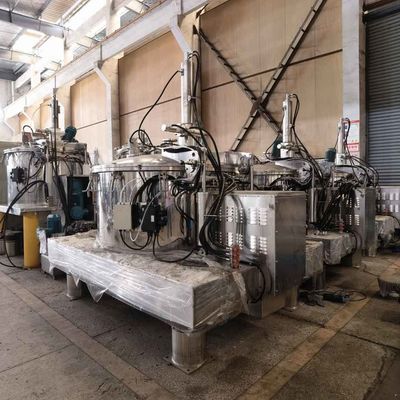

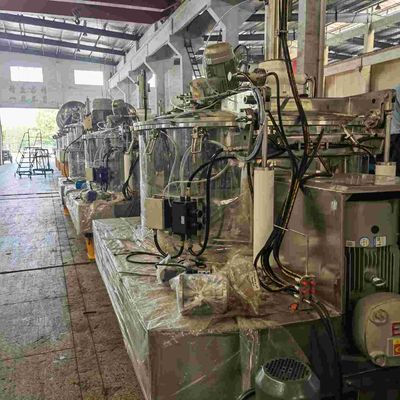

1100rpm Solid Liquid Separation Centrifuge 190L Basket Centrifuge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | LGZ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| MOC: | Stainless Steel | Basket Volume(L): | 190 |
|---|---|---|---|
| Place Of Origin: | China | Control System:: | PLC Control |
| Centrifugal Type: | Basket Centrifuge | Max. Separation Factor: | 678/805 |
| Application: | Solid Liquid Separation, Dewatering | Rotating Speed Control: | Frequency Converter |
| High Light: | 1100rpm Solid liquid separation Centrifuge,1100rpm vertical basket centrifuge,Solid liquid separation Centrifuge 190L |
||
Product Description
LGZ Model Vertical Automatic Platform Base Scraper Bottom Discharge Fiber Separation Solid liquid separation Centrifuge
Scope of Application
It is mainly used for solid-liquid separation of the suspension with various kinds of solid particles and fibrous materials, especially toxic, flammable and explosive materials and those materials with high viscosity and fine particle size. For example, medical products such as antibiotics, vitamins and medical intermediates, food such as salt, monosodium glutamate, food additives, starch, sugar and chemical seasoning, chemical materials, such as ammonium sulphate, gypsum, mirabilite, copper sulphate, potassium chloride, borax, dye, pigment, resin and pesticide, and materials related to mining, metallurgy and environmental protection industries, etc. The centrifuge can achieve remote control, with high automation and large handling capacity.
Technical Parameters
| Items | Models | |
| LGZ1000 | ||
| Basket Diameter(mm) | 1000 | |
| Effective Basket Height(mm) | 550 | |
| Basket Volume(L) | 190 | |
| Max. Capacity(kg) | 230 | |
| Motor Power(kw) | 15 | |
| Max. Speed(r/min) | 1100/1200 | |
| Max. Separation Factor | 678/805 | |
| Weight(kg) | Platform construction | 3500 |
| Square box structure | 4000 | |
Principle
Inclined feed disk working principle
The feed disk is driven by an independent motor and slurry is accelerated.
Feed disk rotating speed is adjustable; the feed disk has the same rotating direction as the drum; their angular velocities are basically equivalent, but there are a rotating speed difference; the inclined feed disk can make slurry from the feed disk evenly distributed in the drum height direction.
Surrounding discharge ports of the feed disk is distributed in the form of sine curve after being projected onto the inner wall of drum.
Adjusting angle of feed pipe and changing the feed range can improve feed balance. Filter cake thickness is basically the same in the direction of drum height; for material with poor mobility, improving feed uniformity is of great significant to reduce the vibration.
Filter Cake Washing
In separation process of most materials, the filter cake needs to be cleaned at the s same time of dehydration to realize the required purity of product. In separation process, there is not only moisture content index of filter cake but also the Index of measuring purity of filter cake. Thus, how to realize the washing requirement of filter cake in the shorter time and with fewer consumption of cleaning gent is very important for capacity, quality and energy consumption and cost.
Washing process: the cleaning liquid is separated while filter cake is cleaned at washing speed after high -speed exhaustion of liquid for filter cake in drum and then high-speed exhaustion of liquid is repeated again.
Form of sluicing pipe: washing of hole of sluicing pipe: atomizing nozzle washing of sluicing pipe; distributing device washing of swash plate.
Washing method: durative washing: impulse washing; cleaning gent washing with measurement.
