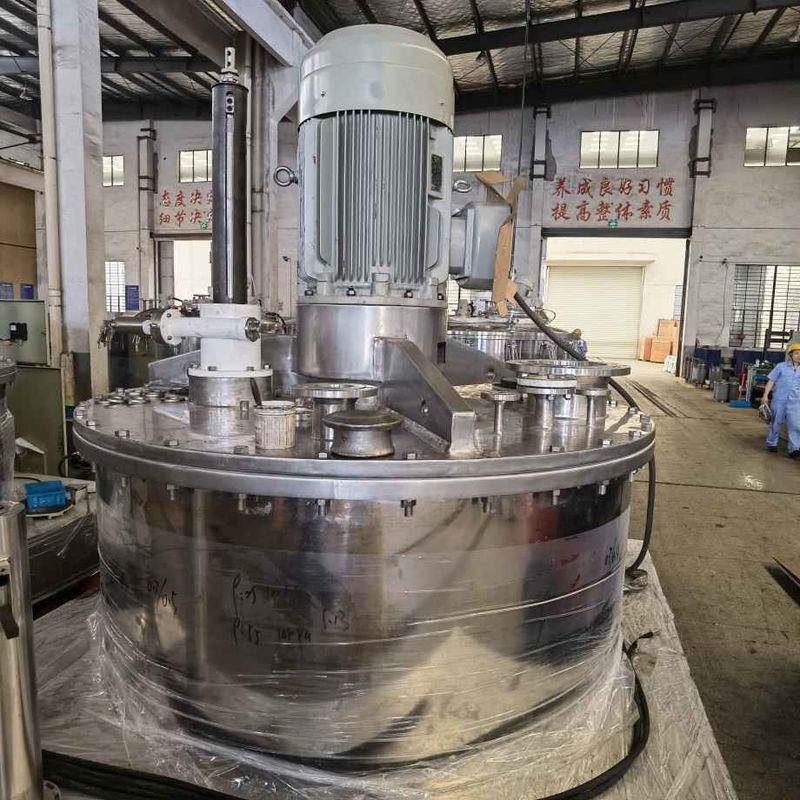

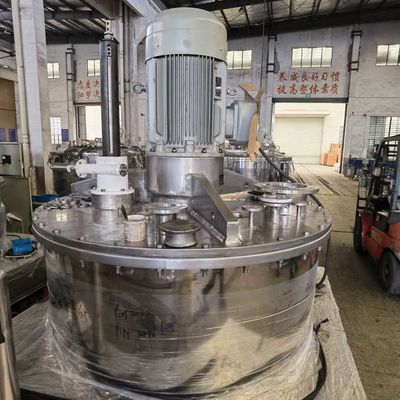

Chemical 900rpm Solid Liquid Separation Equipment 30kw CIP Centrifugal Equipment
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Cover Opening: | Hydraulic Control |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
| High Light: | 900rpm solid liquid separation equipment,900rpm basket centrifuge machine,30kw solid liquid separation equipment |
||
Product Description
PAUT Highly Engineered Disposal Capacity Chemical Design Standardization CIP Centrifugal Equipment
Product features
- Automatic control + multiple safety protection equipment operation, with high reliability
- Automatic program control, reliable operation, and high safety.
- The frequency conversion speed regulation drive is adopted, with stable start, and effective overload protection of the motor.
Scope of Application
PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Technical Parameters
| Items | Models | ||
| PAUT1250 | PAUT1320 | PAUT1600 | |
| Basket Diameter(mm) | 1250 | 1320 | 1600 |
| Effective Basket Height(mm) | 800 | 800 | 1000 |
| Basket Volume(L) | 450 | 490 | 1000 |
| Max. Capacity(kg) | 560 | 620 | 1250 |
| Motor Power(kw) | 30 | 30 | 45 |
| Max. Speed(r/min) | 970 | 900 | 850 |
| Max. Separation Factor | 658 | 600 | 647 |
| Dimension(mm) | 2100*2000*2600 | 2100*2000*2600 | 2700*2350*2900 |
| Weight(kg) | 5000 | 5500 | 10000 |
